GB-160-2R-A

Stripe Sanding Machine GB-160-2R-A

    • Surface polishing and sanding for round tubes and round rods.
Inquiry
PREV BACK NEXT
  • Features
  • Description
  • Specifications
  • Customizable configuration of single or multiple polishing stations.
  • Spindle and feed motors controlled by Variable Frequency Drives (VFD).

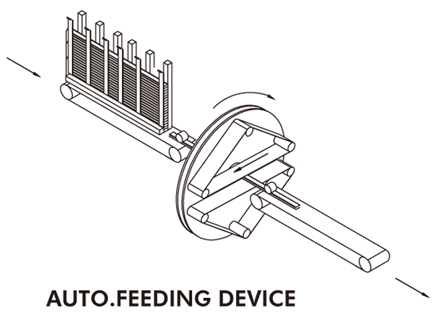

  • Compatible with automated feeding mechanisms.
  • Scaled for mass-production facility requirements.
  • This machine series is engineered for the surface polishing and sanding of round tubes and rods. The hardware architecture allows for customized configurations of single or multiple polishing stations based on specific processing requirements. Both the spindle and material feeding systems utilize VFD control. With the capability to integrate automatic feeding mechanisms, the equipment is configured for mass-production environments, ensuring standardized processing output.
MODEL GB-160-2R-A
Max. working diameter Ø80 mm
Min. working diameter Ø10 mm
Min. working length 240 (280) mm
Sanding head number 1 set
Sanding belt size 3" (4") x 1270 mm (1285mm)
Sanding belt motor 2 HP x 1 set (Optional: 3HP or 5HP)
Sanding belt speed (by Inverter) Variable
Feeding head number 2 set
Feeding motor 1/4 HP x 1/40 x 1 set1/4 HP x 1/30 x 1 set
Feeding speed (by Inverter) 2~25 m/min
Machine dimensions (L x W x H) 1500 x 850 x 1450 mm
Packing dimensions (L x W x H) 1700 x 1000 x 1650 mm
Net weight / Gross weight 470 KGS/ 620 KGS
