GB-800A2E(B2E)
Inquiry
PREV
- Product Description
- Product Specifications

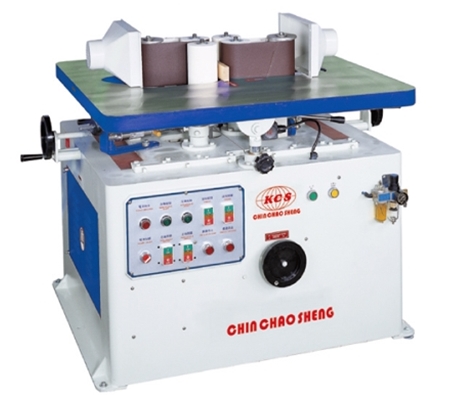

- This machine is designed for surface sanding and polishing of curved workpieces. It can simultaneously sand and polish both sides of the workpiece. Additionally, it can be customized based on customer requirements. The sanding belt is equipped with oscillation functionality, resulting in improved polishing effects. Furthermore, it can be optionally equipped with a variable frequency drive (VFD) for automatic feeding or continuous speed adjustment during sanding.
| MODEL | GB-480PA2FT-R |
| Max. height work | 150 mm (300mm) |
| Range of working thickness | 9~100 mm |
| Sanding belt size | 150 (300) x 915mm |
| Sanding belt motor | 2 HP x 2 (3 HP x 2) |
| Feeding motor | 1/4HP |
| Oscillating drive motor | 25W x 1/50 |
| Sanding belt speed | 3 variable speeds |
| Feeding speed | 3 variable speeds |
| Machine dimensions (L x W x H) | 1350 x 1150 x 1100 mm (1350 x 1150 x 1200 mm) |
| Packing dimensions (L x W x H) | 1430 x 1230 x 1250 mm (1430 x 1230 x 1350 mm) |
| Net weight / Gross weight | 510 KGS/ 760 KGS (560 KGS/ 810 KGS) |
