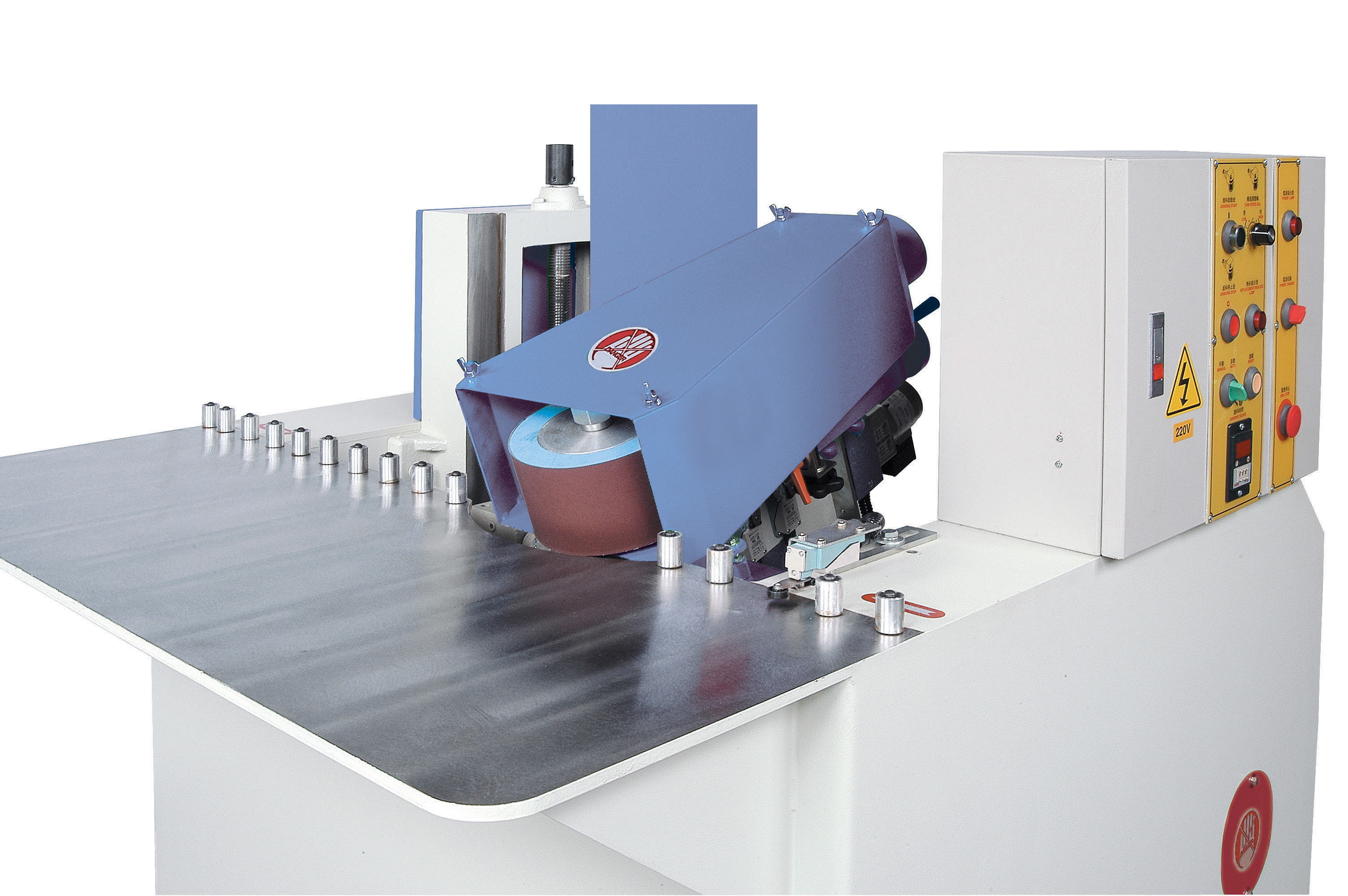

GB-A1F-S
Inquiry
PREV
- Product Specifications
| MODEL | GB-A1F-S |
| Max. workpiece width | 2000 mm |
| Max. workpiece height | 75 (100) mm |
| Min. workpiece length | 250 mm |
| Sanding head tilts | 70~190 degree |
| Motor drive of (A) sanding wheel | 2 HP x 1 |
| Sanding wheel speed | By variable speed of frequency inverter |
| Machine dimension (LxWxH) | 1350 x 1150 x 1200 mm |
| Packing dimensions (LxWxH) | 1550 x 1350 x 1500 mm |
| Net / Gross weight | 1000 KGS/ 1200 KGS |
