GB-C2E3-R

Auto. Cutting and Forming Machine GB-C2E3-R

    • Manufacturing of wooden hangers.
Inquiry
PREV BACK NEXT
  • Features
  • Description
  • Specifications
  • 1. Comprehensive production line consisting of 19 integrated machine units.
  • 2. Requires an operational workforce of 24 personnel.
  • 3. Defined production capacity: 20 wooden hangers per minute.
  • 4. Optional integration of a Central Control System (CCS).
  • 5. Optional Automated Defect Inspection equipment to achieve a fully automated production architecture.

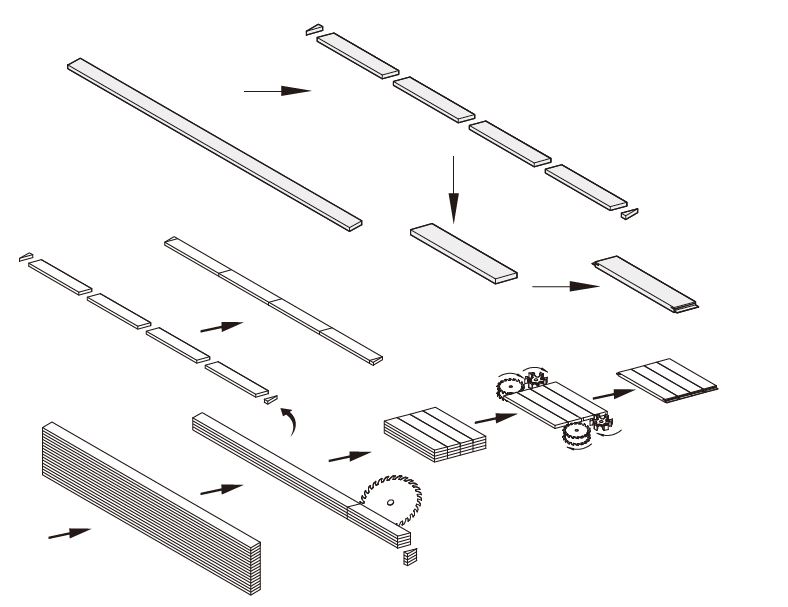

  • This equipment series constitutes a complete production line engineered specifically for the manufacturing of wooden hangers. The baseline system architecture consists of 19 individual machines requiring an operational workforce of 24 personnel, delivering a fixed production capacity of 20 units per minute. The system configuration is scalable, allowing for the integration of an optional central control system and defect inspection equipment to upgrade the facility into a fully automated manufacturing environment.
MODEL GB-C2E3-R
The range of work piece width 10-100 mm
The range of work piece height 5-150 mm
The range of work piece length 150-1500 mm
CUTTING head unit 4 set
Jumping Function 2nd set (The first seat on the left, the first seat on the right)
Motor drive of moulding 7.5 HP x 4
(C) Moulding speed control 6000-7800 R.P.M
Circular saw head 1 set
Motor drive of saw 3 HP
(E) Saw speed control 3400 R.P.M

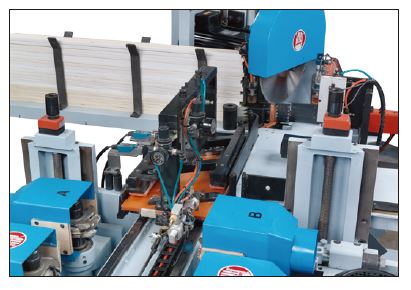

Automatic laminated system for automatic feeding working piece The bease configure with hydraulic & air cylinder for cutting stable.
The base with linear bearing for precisely and stably cutting head is configure with jumping device to avoid splitting the raw and finish wooden piece.
